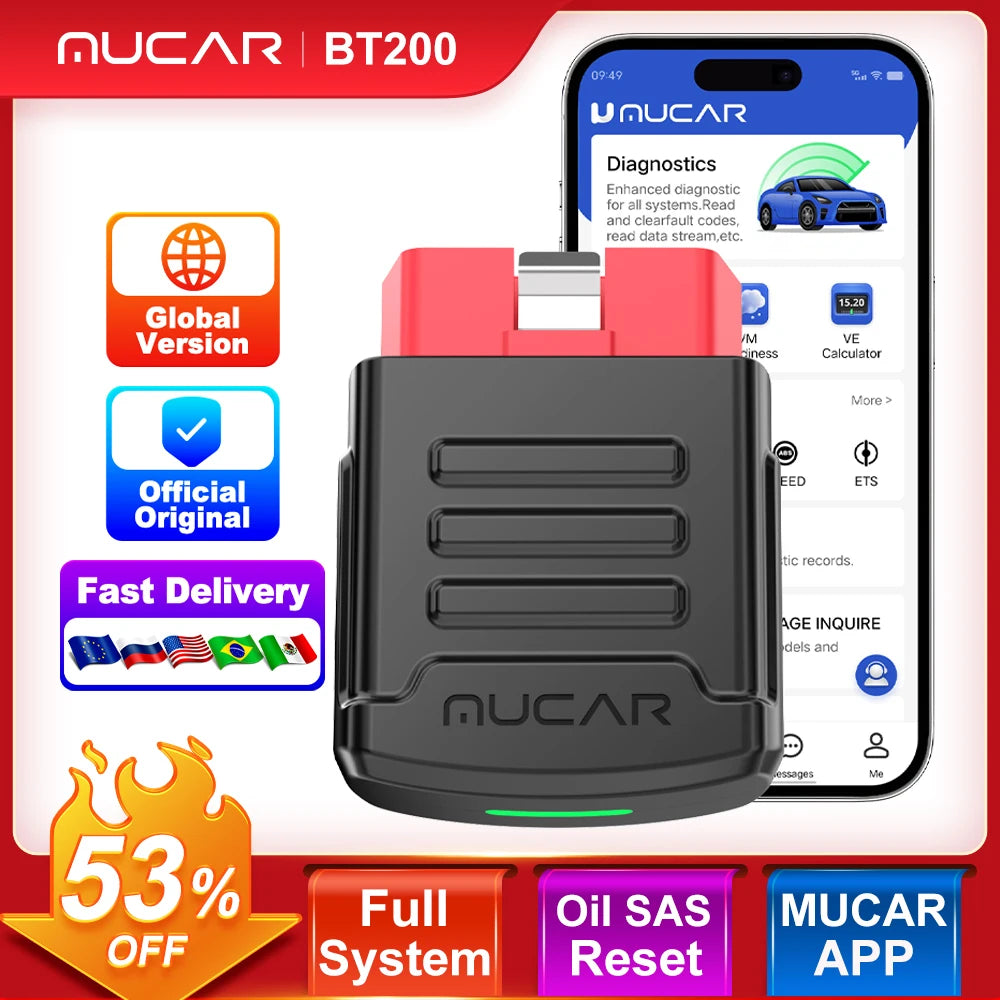

MUCAR BT200 Bluetooth OBDII Scanner with Service Reset Functions

The MUCAR BT200 is a dedicated automotive diagnostic interface that communicates via Bluetooth to allow users to operate an embedded application for vehicle analysis. Designed primarily as an engine analyzer, this unit connects directly to the vehicle's OBD2 port to access error codes and sensor data. Unlike standalone handheld readers, the BT200 leverages the display and processing power of your smartphone through the MUCAR mobile software platform.

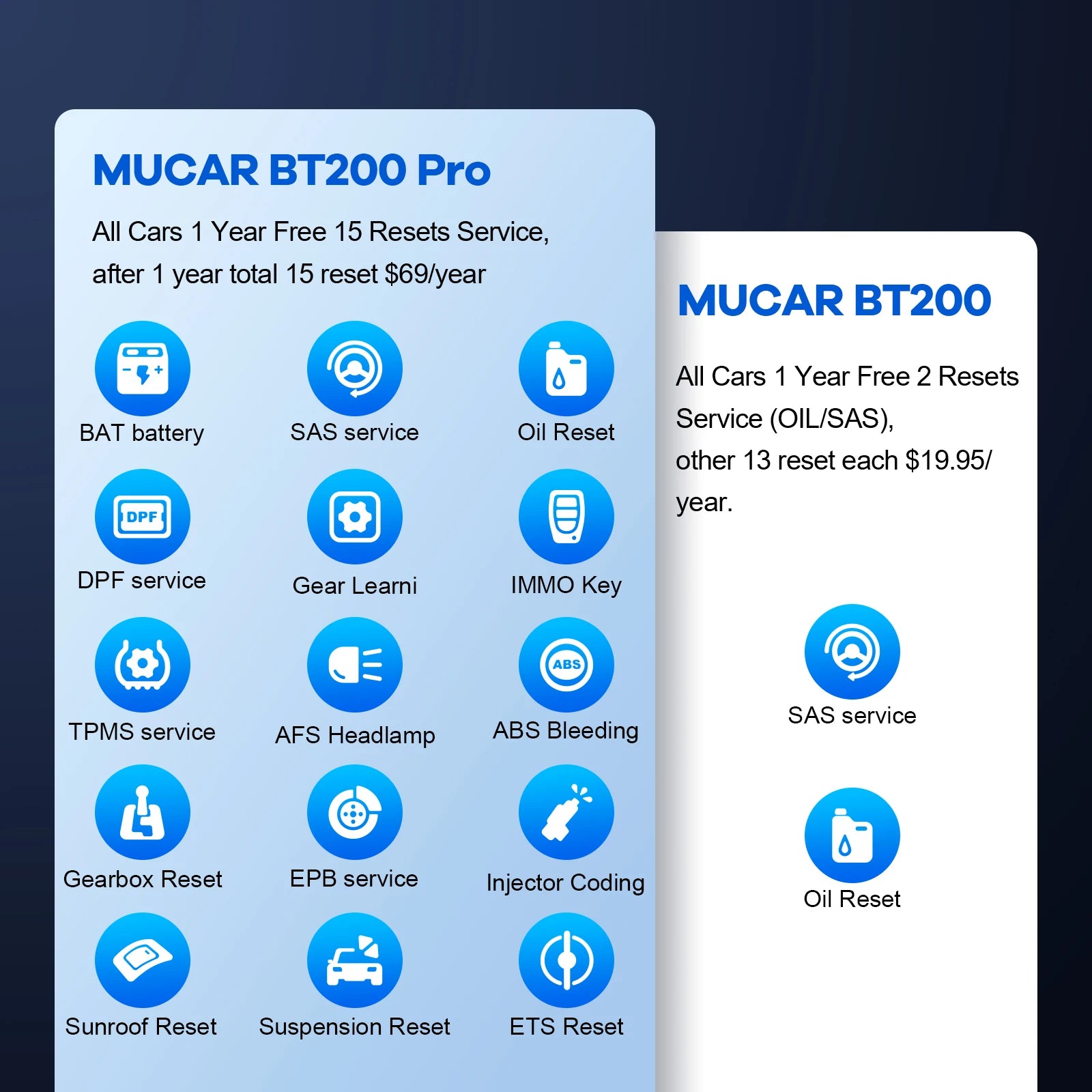

Operational safety and convenience are central to the design. The unit operates on a wide electrical range of 9-18v, drawing power directly from the vehicle's battery, meaning you do not need to replace internal batteries for daily operation. It includes specific maintenance features such as Oil Reset and SAS (Steering Angle Sensor) Reset, clearing warning lights after routine service tasks are completed. Because no telecommunication hardware is integrated, the device avoids cellular network dependencies entirely.

Build fidelity ensures durability during garage use. Crafted from a combination of ABS plastic and metal shielding, the lightweight scanner resists impact while conducting sensitive electronic signals. The manufacturing adheres to international compliance standards including RoHS, FCC, CE, and CCC certification marks. The compact shell measures roughly 3.15 in height, 2.1 in length, and 1.14 in width, while weighing approximately 0.12 lbs.

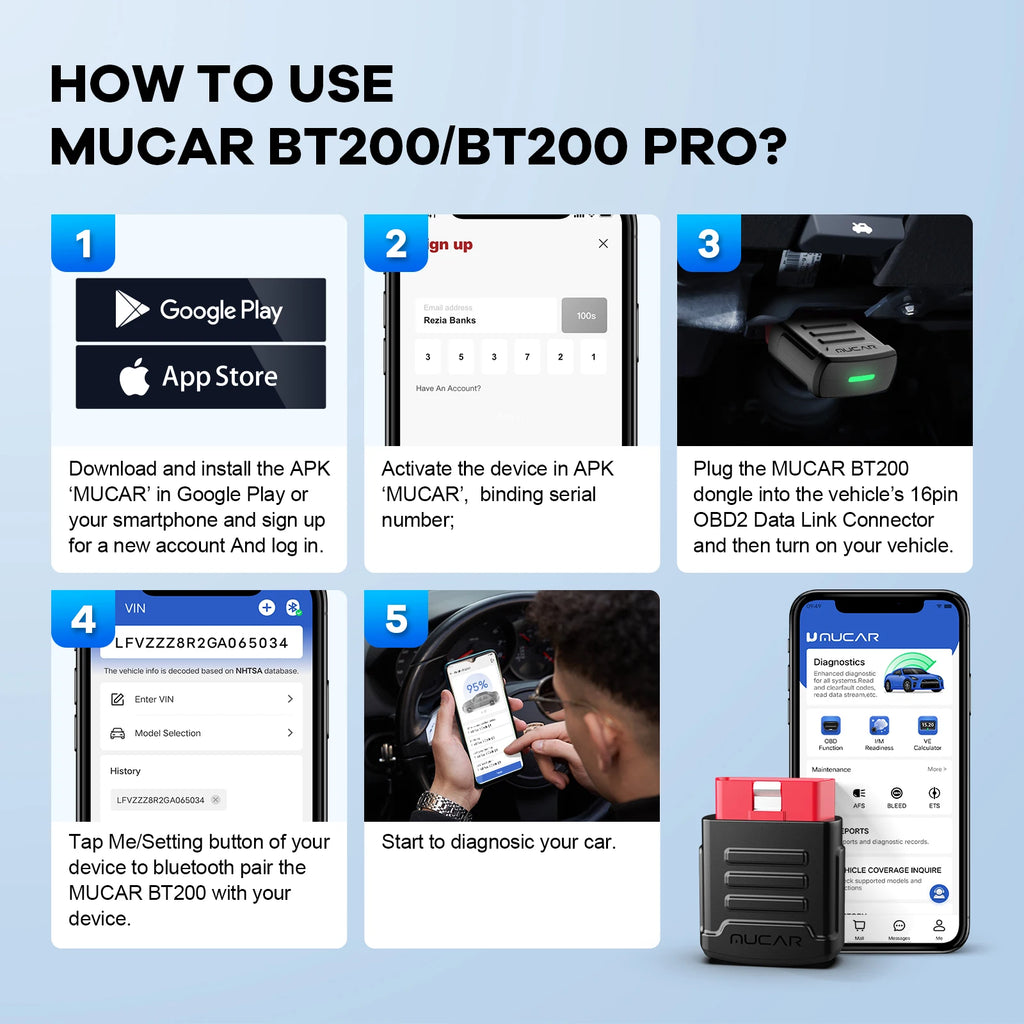

• Connectivity: Wireless Bluetooth linkage to compatible Android or iOS devices running the official app.
• Power Requirements: Draws from vehicle supply between 9-18v; does not contain an internal battery.
• Software Support: Supports APP update mechanism for continuous model compatibility.
• Materials: Heavy-duty ABS and metal components designed for mechanical stress.

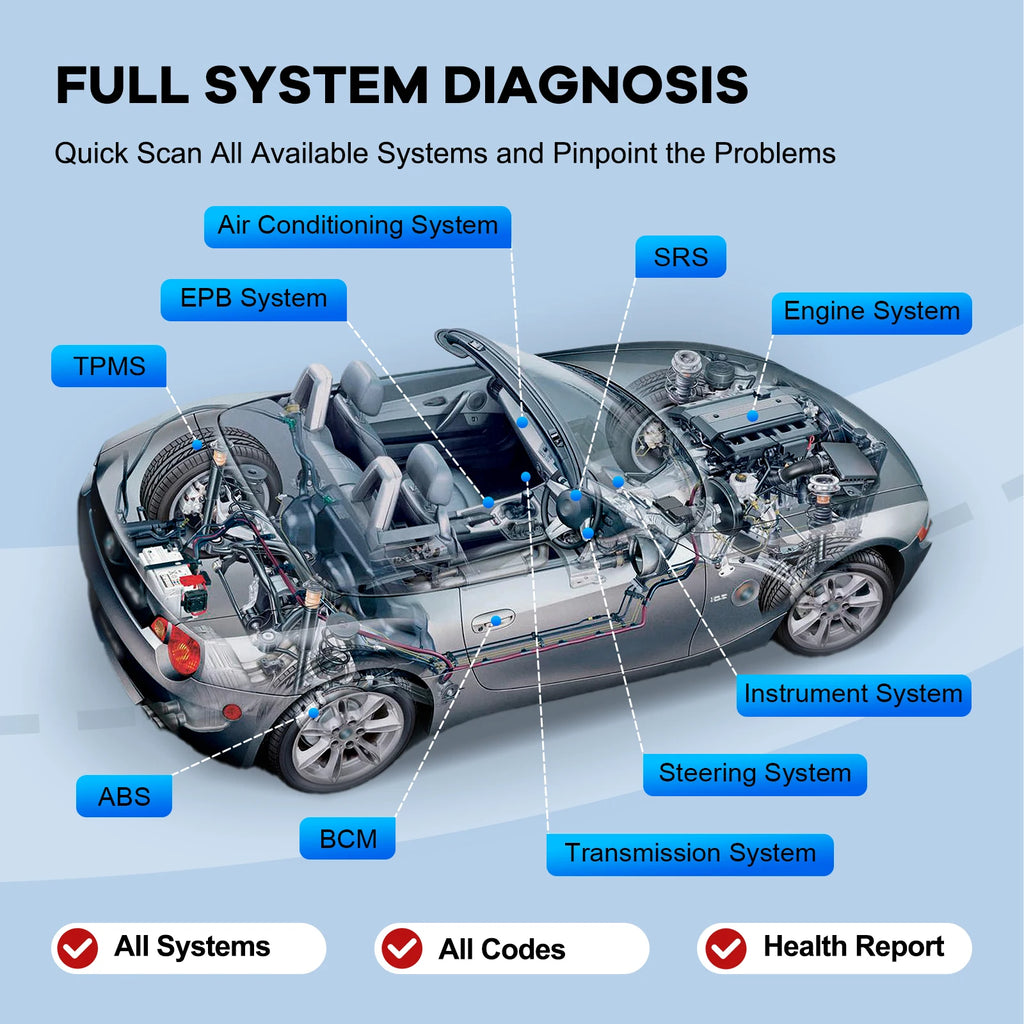

This diagnostic tool supports lifetime complimentary software versions and includes access to full system diagnostic functions. Ensure compatibility with your vehicle's OBD2 protocol before purchasing.

SPECIFICATIONS

Brand Name: MUCAR

Certification: RoHS,FCC,CE

Electronic: No

External Testing Certification: CCC

Hardware Version: MUCAR

High-concerned chemical: None

Is Batteries Included: No

Item Height: 3.15

Item Length: 2.1

Item Type: Engine Analyzer

Item Weight: 0.12

Item Width: 1.14

Material: ABS.Metal

Model Name: MUCAR BT200

Origin: Mainland China

Software Version: APP Update

Special Features: Bluetooth

Use: Not Telecommunication

Voltage: 9-18v
