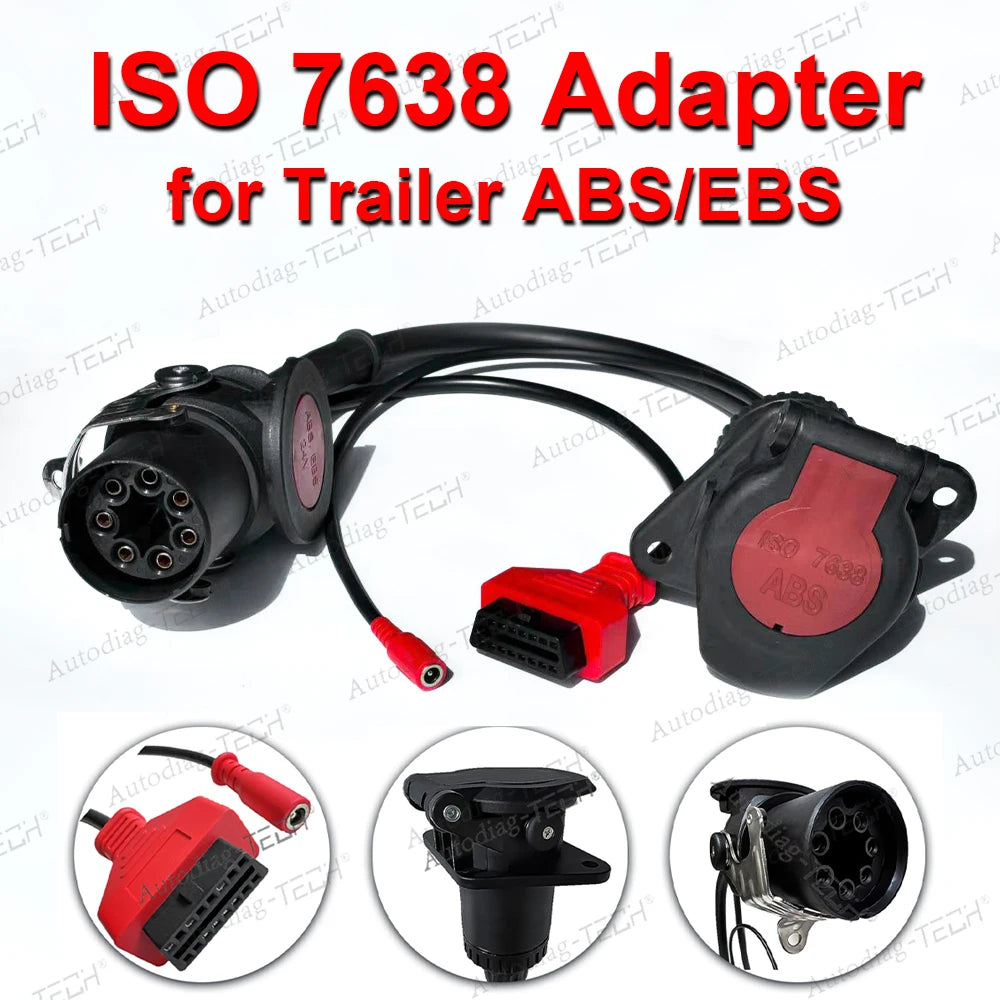

EBS ISO 7638 7-Pin Trailer ABS OBD Diagnostic Adapter

Perform independent electronic brake diagnostics on heavy-duty trailers without connecting to a tractor engine. This ISO 7638 7-pin adapter meets CE and RoHS certification standards while bridging your scan tool to a trailer’s Electronic Braking System (EBS). Powered by a 5V-24V supply via the OBD-II interface, it supports K-line and CAN bus communications to interact directly with the trailer control unit.

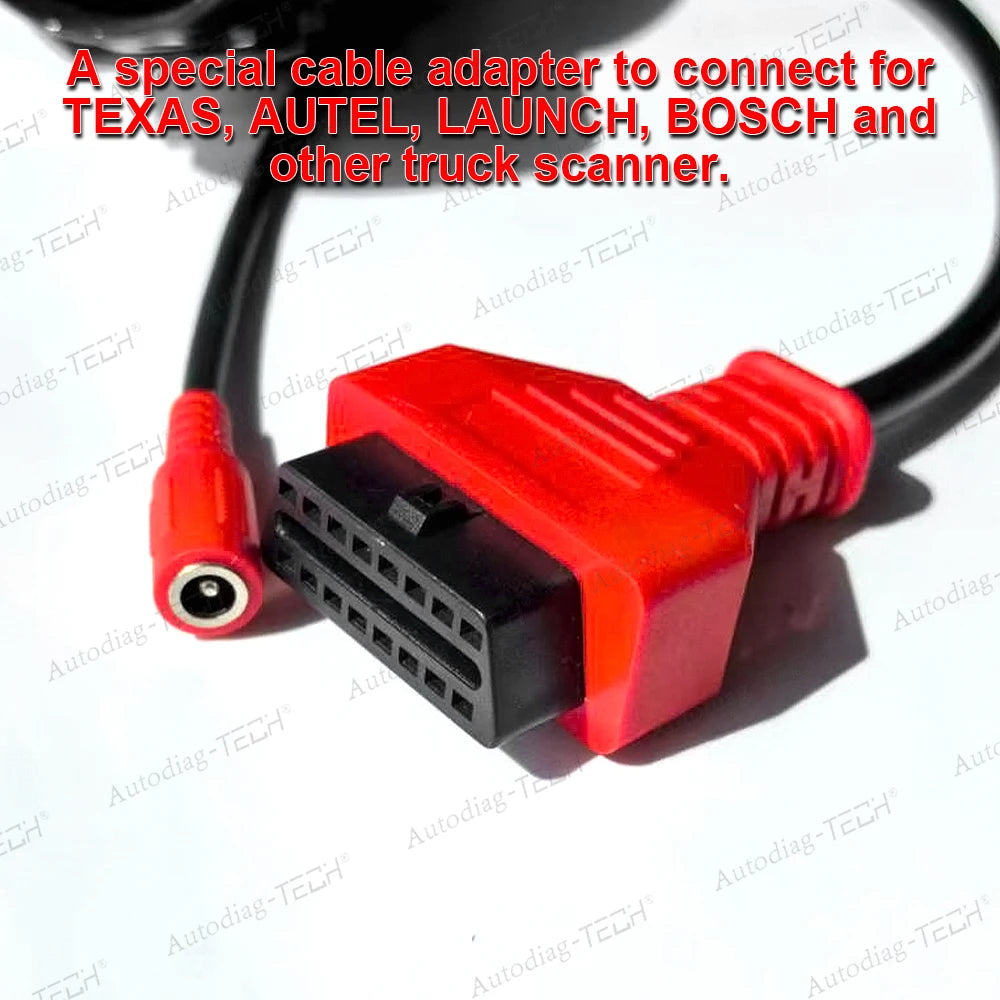

Compatible Scan Tools: This hardware functions as a dedicated converter for major commercial vehicle diagnostic platforms. It is verified to work with the following scanner brands:

• Bosch Truck Scanners
• Autel Truck Diagnostic Devices
• Launch Commercial Vehicle Scanners
• Autocom Diagnostic Interfaces

Supported Trailer Electronics: The adapter targets specific European braking architectures and legacy systems used in cargo vehicles. Compatible braking systems include:

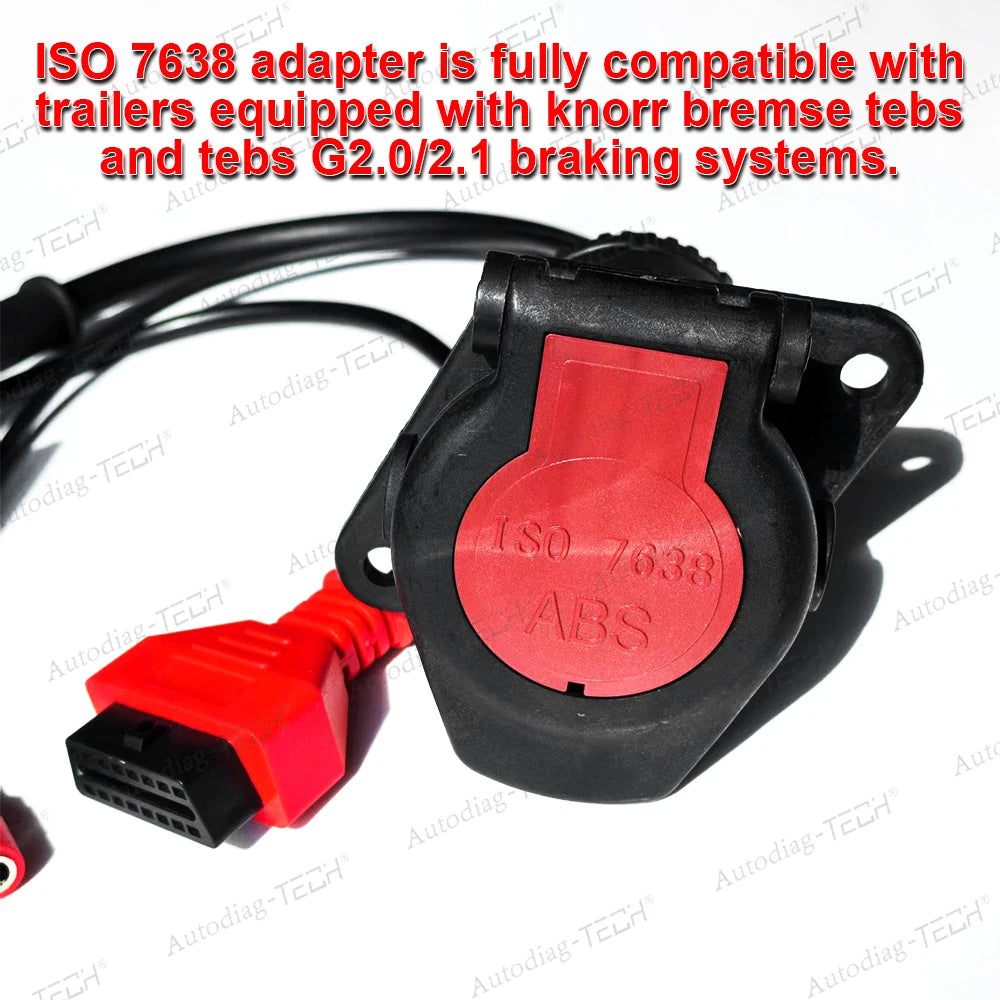

• Knorr-Bremse TEBS and TEBS G2.0/2.1
• TEBS 4 (Haldex G1) manufactured circa 2001
• Haldex EB+ Generation 2 (circa 2006)
• Haldex EB+ GEN3 (2011 and later)

Incompatibility Notice: Do not use with Delphi systems. This adapter also does not support Wabco TEBS C (approx. 2004), TEBS D (approx. 2008-2009), or TEBS E systems (around 2013). Batteries are not included.

Diagnostic Functions: Beyond reading fault codes, this interface allows technicians to execute active service procedures. Operations enabled on supported systems include performing valve checks, programming new valves, saving programs to disk, deleting daily operations data, and viewing current real-time parameters.

SPECIFICATIONS

Brand Name: AD

Certification: RoHS,CE

Communication Interface: OBD-II,Others

Electronic: No

External Testing Certification: ce

Features 1: Adapter for Bosch, Autel, launch, Autocom truck scanners

Features 2: Supported 5v-24v power supply, no tractor

Features 3: Compatible with trailers equipped with Knorr Bremse tebs and tebs g2.0/2.1 braking systems

Features 4: Compatible with Knorr tebs and tebs G2

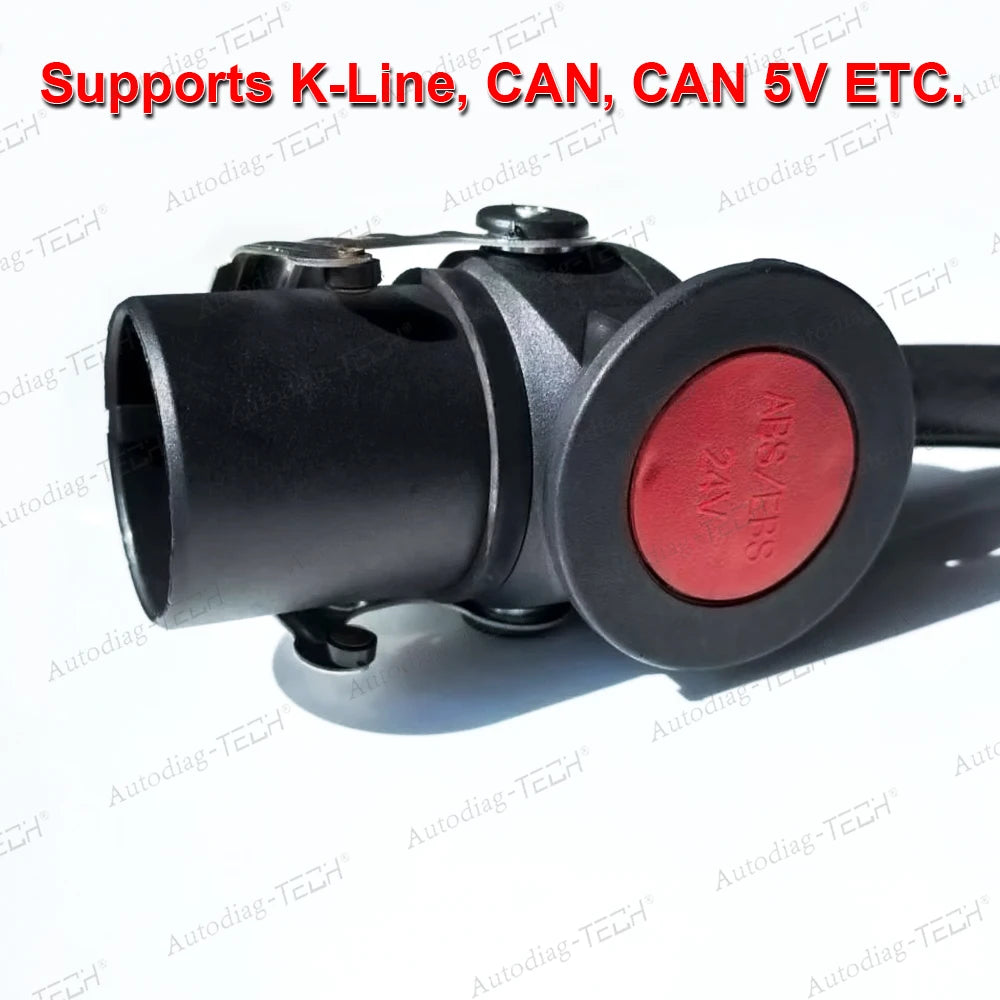

Features 5: Compatible with cargo scanners supporting K-line, CAN, CAN 5V, etc.

Features 6: Allows to diagnose a trailer without connecting it to a truck

Fuction 1: Diagnos

Fuction 2: Clear fault code

Fuction 3: Perform valve checks

Fuction 4: Program valves and save valve programs on disk

Fuction 5: Delete daily operations of trailers

Fuction 6: View current parameters

High-concerned chemical: None

Is Batteries Included: No

Item Type: Car Diagnostic Cables and Connectors

Item Weight: 0.69

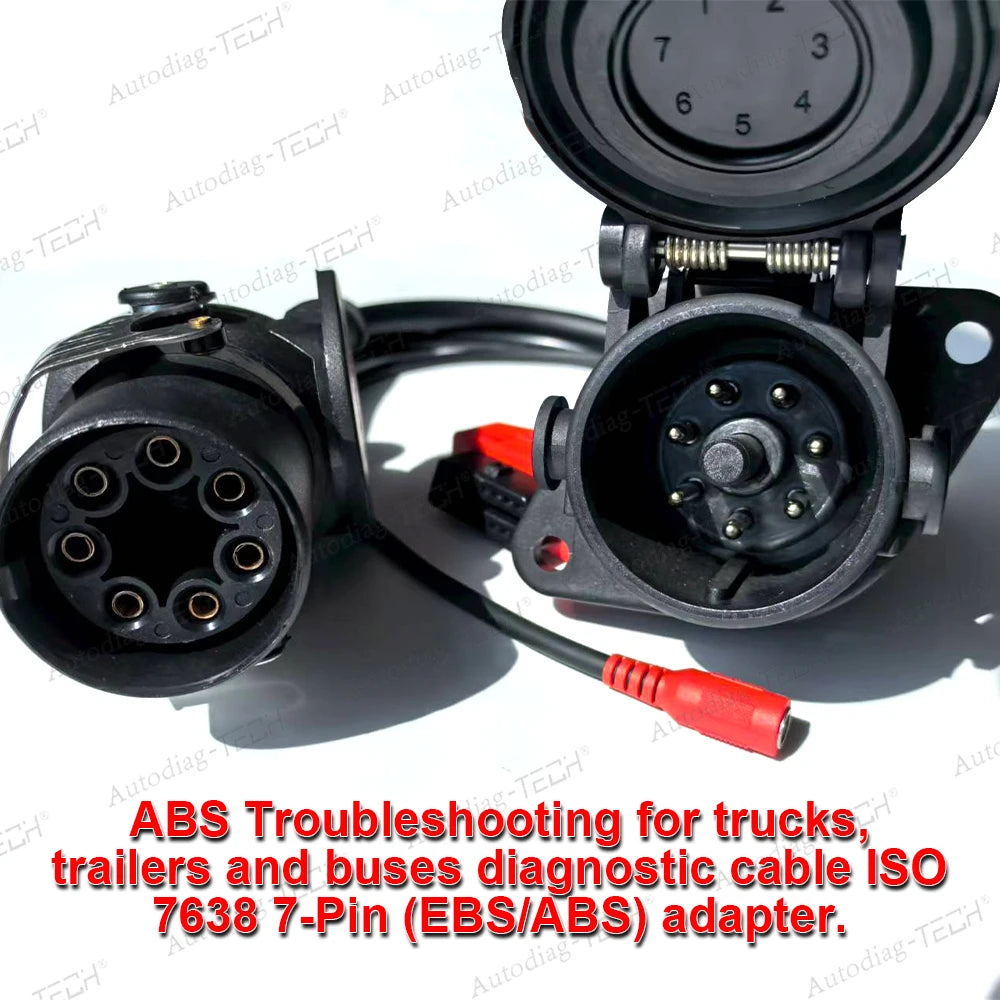

Model Name: ISO 7638 7-pin (EBS ABS) adapter

NOTE: Do not supported Delphi systems

Not Supported Systems 1: Not Supported Systems 1

Not Supported Systems 2: Wabco TEBS C around 2004

Not Supported Systems 3: Wabco TEBS D approximately 2008-2009

Not Supported Systems 4: Wabco TEBS E around 2013

Origin: Mainland China

Supported Systems 1: TEBS4 (G1) around 2001

Supported Systems 2: Haldex EB+ around 1997

Supported Systems 3: Haldex EB+ Gen2 around 2006

Supported Systems 4: Haldex EB+ GEN3 has been around since 2011

Use: Not Telecommunication
