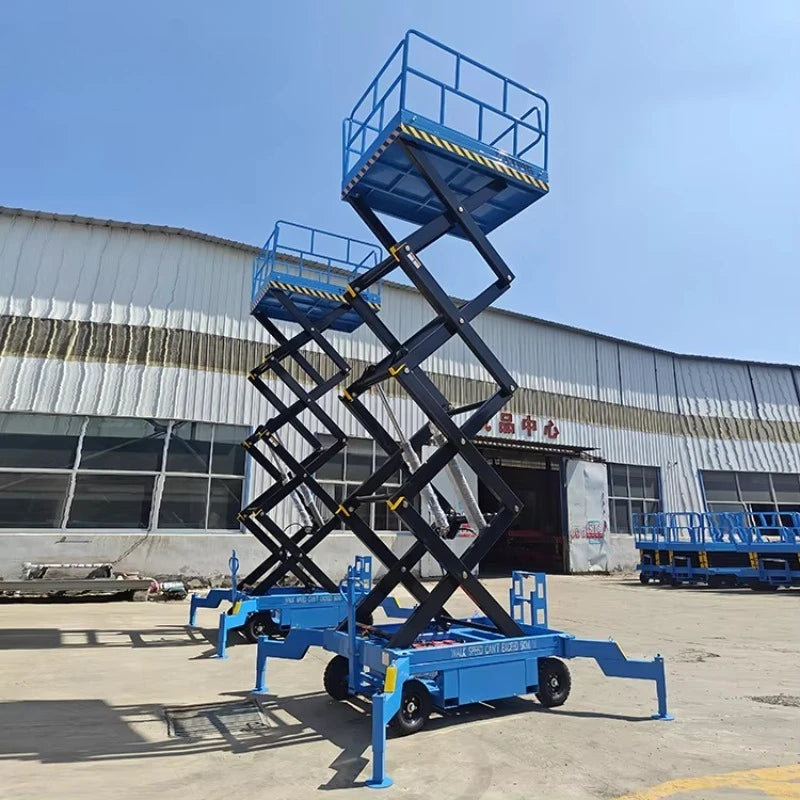

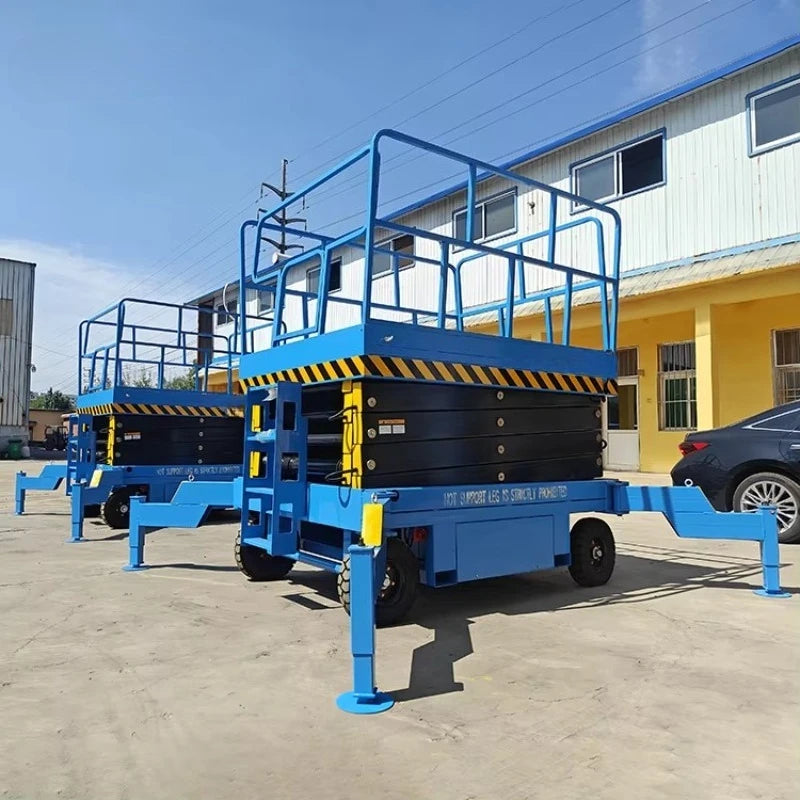

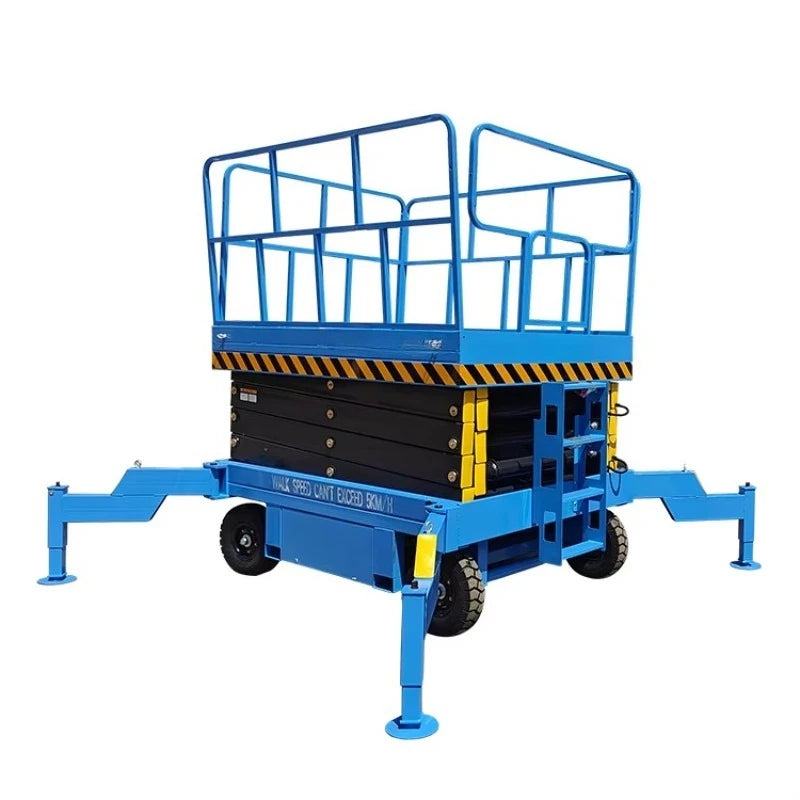

Industrial Electric Hydraulic Mobile Scissor Lift with 230kg Load Capacity

This 2025 CE compliant mobile scissor lift combines steel durability with precise hydraulic control for elevated work environments. Designed as a self-propelled lifting platform, it features a battery-powered system capable of supporting up to four personnel simultaneously under its maximum safe working load of 230kg. The hydraulic motor utilizes a 24V/4.5kw system to regulate lifting speeds between 3 and 5 meters per minute, ensuring smooth ascents for materials or operators while maintaining stability during operations. When operating, the drive motors provide a stowed travel speed of 3 km/h and reduce to 2.4 km/h when the platform is raised. The unit navigates tight spaces with a minimum inner turning radius of 0.35 meters and supports gradeability of 0.25 on inclined surfaces. The steel table deck measures 2.26 by 1.13 meters, offering ample standing space even when the extended platform increases the load zone by 0.9 meters for a secondary 100kg capacity usage area. Power is supplied by four 6V/225Ah batteries connected to the central hydraulic system. In its resting state, the unit stands at 1.95 meters tall with an overall width of 1.13 meters and weighs 2060 kg, designed to fit industrial warehouses, maintenance bays, and assembly facilities requiring reliable vertical transport. Key Technical Specifications:

• Lifting Mechanism: 24V/4.5kw Lifting/driving motor
• Capacity: 230kg Safe working load; 100kg Extended platform load
• Dimensions: 2.26m Overall Length x 1.13m Width; 1.95m Stowed Height
• Battery: 4x 6V/225Ah configuration

SPECIFICATIONS

Battery: 4x6V/225Ah

Brand Name: NONE,YG

Condition: New

Extended platlorm safe working load: 100kg

Gradeability: 0.25

Ground clearance: 0.3 m

Ground clearance-center: 0.1/0.02m

Height- stowed: 1.95 m

High-concerned chemical: None

Length extension deck: 0.9m

Lift capacity on the extension: 100kg

Lifting / driving motor: 24V/4.5kw

Lifting speed: 3-5m/min

Lifting/lowering speed: 150/120Sec

Material: Steel

Max platform height: 4.4 m

Origin: Mainland China

Overall Length: 2.26

Overall Width: 1.13

Place of Origin: Henan, China

Platform Height Maximum: 14m

Power Souce: Electric

Power Source: Battery

Safe working load: 230kg

Table Size: 2.26 * 1.13* 1.1m

Weight: 2060 kg

Wheelbase: 2500 mm, 1.89m

Width: 1.13

Working Height Maxdmum: 16m

drive speed-raised: 2.4 km/h

drive speed-stowed: 3 km/h

max. platform occupancy: 4 Pers

min.Turning radius (inside): 0.35 m

min.Turning radius (outside): 6.3 m
